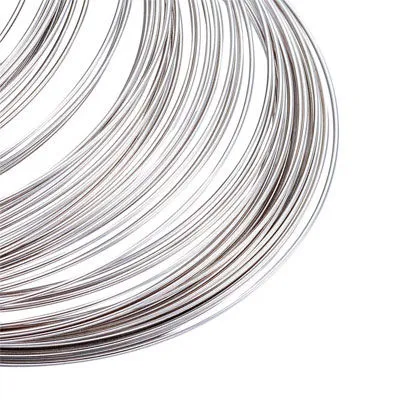

Platinum wire Pl 99.9, 0.90 mm, GOST 18389-2014

Platinum wire Pl 99.9 has a nominal diameter of 0.90 mm. The grade specifies a minimum mass fraction of platinum of 99.90% and an allowable sum of impurities, while GOST 18389-2014 defines requirements for geometry, surface, condition, and supply of the wire. The diameter is given with a decimal comma in accordance with the Russian-language specification.

Confirmed characteristics

• Material: platinum grade Pl 99.9
• Platinum: not less than 99.90% per GOST 13498
• Nominal diameter: 0.90 mm
• Wire standard: GOST 18389-2014
• Standard form of supply: coil

Item number — 5204502. Actual specifications are confirmed by the batch quality document.

Purpose and applications

• manufacture of wire electrodes and laboratory current leads;
• winding of spirals and production of mesh elements per working documentation;
• fabrication of instrument components with subsequent dimensional and performance inspection;

Quality control

For diameters over 0.5 mm, the standard provides supply only in coils. For the range above 0.40 to 1.00 mm, the nominal weight of wire per coil is not less than 55 g, reduced weight — 25 g; other options are agreed upon. The coil is formed from a single length without splices, twists, or knots. The surface must be free of films, cracks, pits, and delaminations.

What to agree before ordering

Before ordering, select soft M or hard T condition, normal N or high P accuracy, and coil weight or length. Agree on requirements for ovality, surface, and allowable local discoloration. The certificate must confirm the Pl 99.9 composition and batch, and the inspection document must confirm the diameter. Electrical parameters of the finished part are determined by calculation and testing after manufacture.

Storage and handling

Keep the wire in protective packaging, avoiding moisture, aggressive substances, impacts, and sharp bends. Unwind without jerks, maintaining surface cleanliness and coil traceability. Track by weight during transfer and manufacturing operations; return scrap in separate labeled containers. Before welding or annealing, check the compatibility of tooling and atmosphere.
